VRF air conditioner China good quality VRF Factory for years.

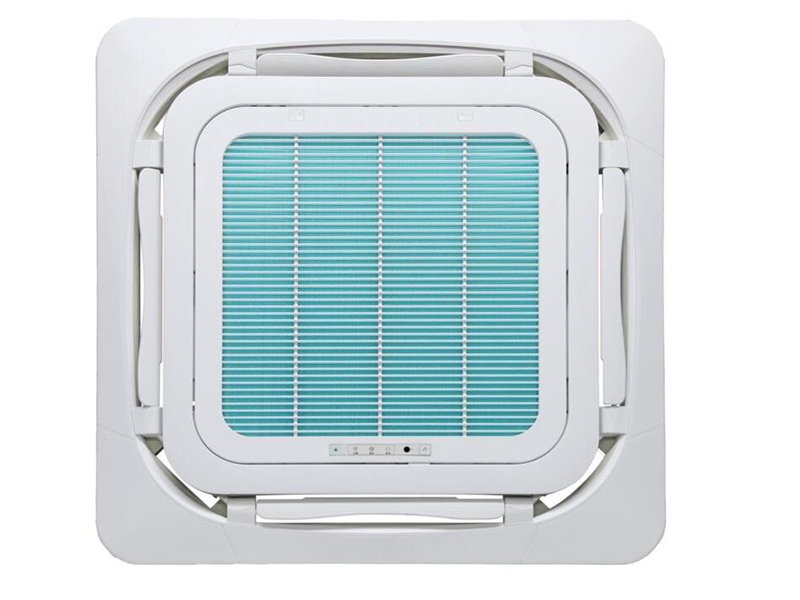

Dekon VRF air conditioner indoor unit

Round way ceiling cassette type

Capacity 14KW/48000BTU

China best suppier and factory for VRF air conditioner.

Features of Dekon Round way cassette type indoor units:

A. 360° air outlet,no blind spot

B. Compact design, only 230mm height

Has slim body with 230mm height,it is specially suitable
for low suspended ceiling rooms.

C.Built-in drain pump, drain height can be 1200mm

Built-in with long life drainage pump, Pumping head is
1200mm, flexible for drainage pipe design

Specifications for DEKON VRF Cassette indoor unit-Round way cassette

DEKON VRF air conditioner,with below features:

1. Environmental and healthy
A. DC inverter module uses of R410A refrigerant, non destruction to the ozone layer, energy saving, environmental protection and pollution-free;
B. All materials of DC inverter module comply with RoHS environmental directive.
2. Reliable and durable
Adopted Hitachi compressors, efficient, reliable, frequency and fully verified.
3. High efficiency and energy saving
A. DC inverter module uses Hitachi high-performance high efficiency compressor;
B. DC inverter module uses advanced output capacity control technology, according to the indoor, outdoor temperature and load of indoor unit, automaticallyadjust system output capacity, so that indoor can remain in a stable and comfortable temperature, reaching high efficiency and energy saving effect;
C. In cooling mode, EER can achieve up to 4.18, with average EER 3.55;
D. In heating mode, COP can achieve up to 4.37, with average COP 3.96;
4. Long piping design
Maximum length of pipeline up to 150 meters, the max.
Height difference between indoor and outdoor unit up to 50 meters, widely use;
5. Wide operation temperatureCooling operation temperature: 0 ~ 46 degrees
Heating operation temperature: -15 ~ 28 degrees
6. Intelligent control
Our VRF unit only uses one set of control software can manage up to 4096 sets indoor units, canculating each indoor unit as 5HP, total management over 20, 000HP.
