Product name：R22 gas Air cooled chiller screw type 500TR with heat pump ASWC-HC510

Product Description

Detailed Product Description

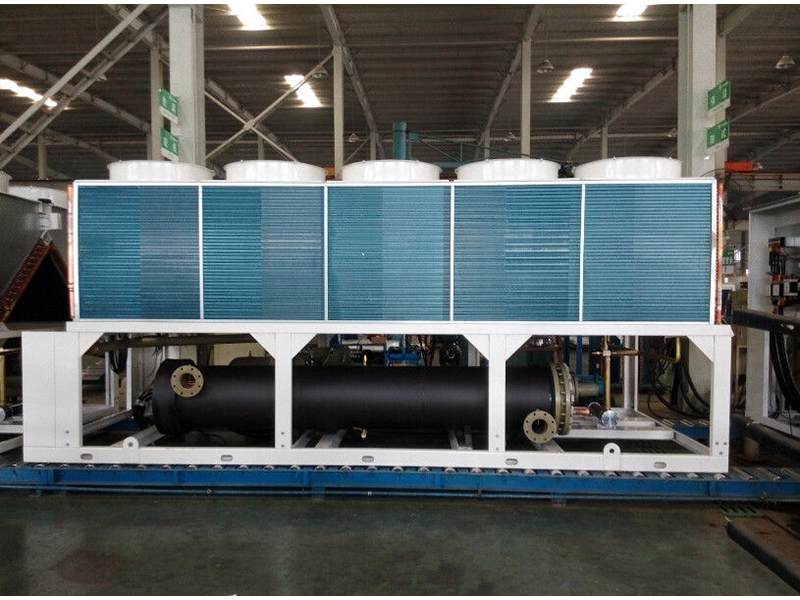

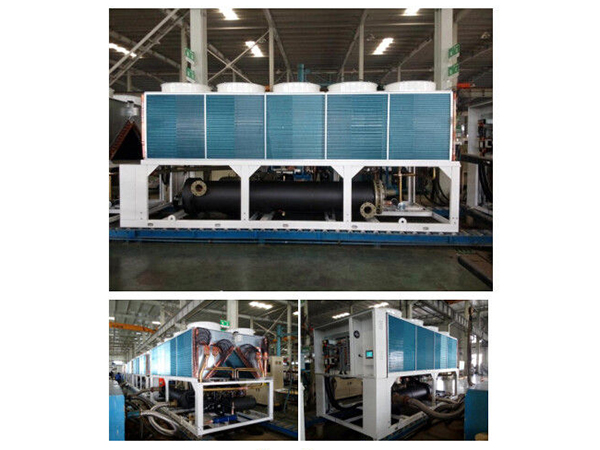

Air cooled chiller screw type 500TR with heat pump ASWC-HC510

Cooling Capacity 500TR;

R22 gas with heat pump;

Three compressor design;

1.Nominal cooling condition: water outlet 7℃ ,air intake 35℃ .

2.Nominal heating condition: water outlet 45℃ ,air intake 7℃ DB/6℃ WB.

3.Partial heat recovery highest water outlet temperature 55℃ .

4.Max input power is 1.25 times of the nominal input power

DEKON High efficiency screw compressor heat pump is with advanced gear type

design, high precisely machined and high volumetric efficiency; utilization of branded

fluorine endurance motor in the compressor resulted in high efficiency in different

working conditions.

Apply strengthened heat transfer technology to enhance heat transfer efficiency of

evaporator and condenser, which could increase the evaporating temperature and

reduce the condensing temperature. Thanks to that the COP is improved obviously.

Optimize the refrigerant phase and flow rate. Higher heat transfer efficiency

thanks to un-match arranging of heat exchange tube.

Patented double stage liquid equivalent device distributes the refrigerant evenly

and has higher heat transfer efficiency.

Apply high efficient heat exchange tube increasing the heat transfer efficiency 15%.

Adopt optimized inverted “M” shaped structure, which could improve the air

flow and the ventilated efficiency to avoid air mass interfering each other. More

equality air distribution realizes a higher heat exchange performance.

Unique and un-matched refrigerant circuit could adapt the change of refrigerant

phase and increase the heat exchange rate.
