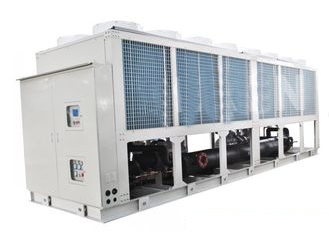

Product name：Air cooled chiller screw type 200TR with heat pump (CMA200DN)
Product Descriptionunit style CMA200DN Cooling capacity kW 700 Input power when cooling kW 222 Nominal absorbed current of unit A 420 COP kW/kW 3.15 Power supply V/P/HZ 3P/380V/50HZ Max absorbed current of unit A 540 Control type SIEMENZ PLC Refrigerant type R407C Discharge volume kg 218 Refrigerant control type THERMAL EXPANSION Compressor type semi-hermetic screw type Compressor number set 2 Compressors power input kW 101×2 Compressors absorbed current A 178×2 Capacity stage 12.5~100% Evaporator type shell and tube type Water temperature IN/ OUT ℃ 12∕7 Water Flow user side m3/h 120.4 Diameter of water pipe DN DN150 Total water DP kPa 68 Outdoor temperure(design) ℃ 35 Unit working temperature range ℃ 21~43 Condenser Condenser type copper tube+aluminum fin Fan type axial type Fan number 16 Air flow m3/h 20000×16 Fans power input kW 1.25×16 Fan absorbed current A 4×16 Heating recovery Heating recovery capacity kW 280 Water temperature of IN/OUT ℃ 40/45 Water flow m3/h 48.2 Water DP kPa 50 Diameter of water pipe DN 80 Unit dimensions &Weight Height mm 2500 Length mm 8160 Depth mm 2232 Unit weight kg 8600 SAFETY DEVICE & ACCESSORY Pressure switch(High, Low); Fusible Plug; Electronic over current relay Discharge temp.thermistor; Freeze protetion thermistor; Safety vavle f
